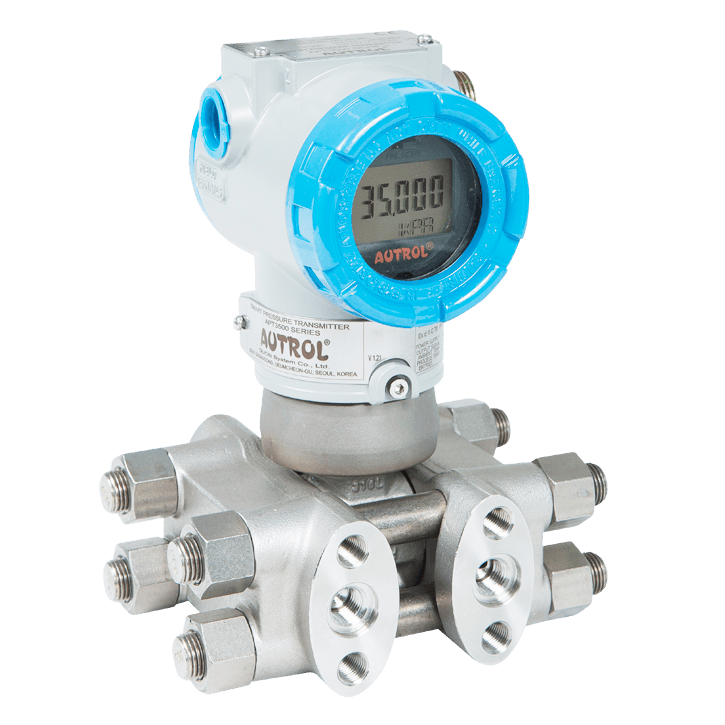

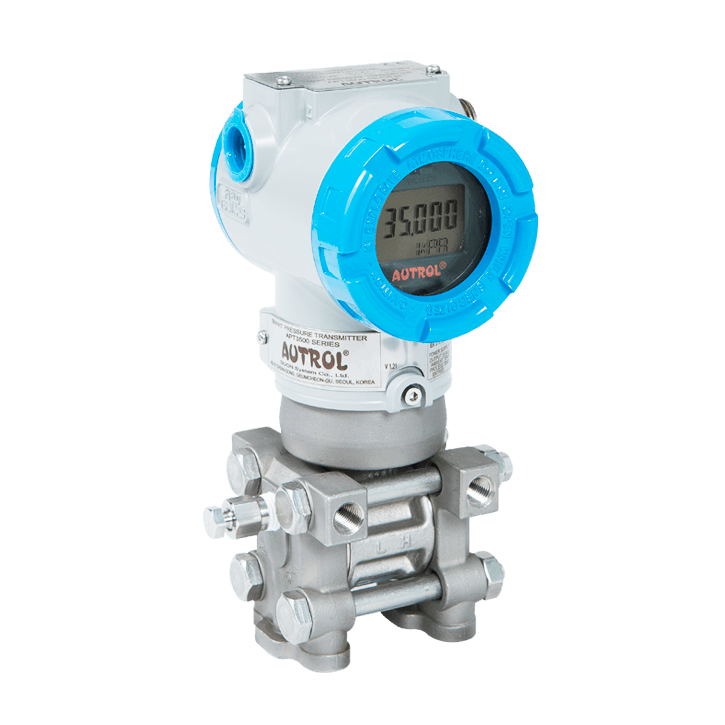

APT3500
등록일: 2023. 07. 19.태그: APT3500, Autrol
- Type
- Pressure: Differential(DPIT), Gauge/ Absolute(PIT),
Level(LIT), High Static Pressure, Flow Pressure(FIT)
- Certificate
- SIL2 (TUV, FMEDA), Ex d, Ex ia, FM, ATEX, TR
CU(EAC), INMETRO, CE, Rohs, BV, LR, KR, DNV, ABS,
KCs, IP66/67, NEMA 4X

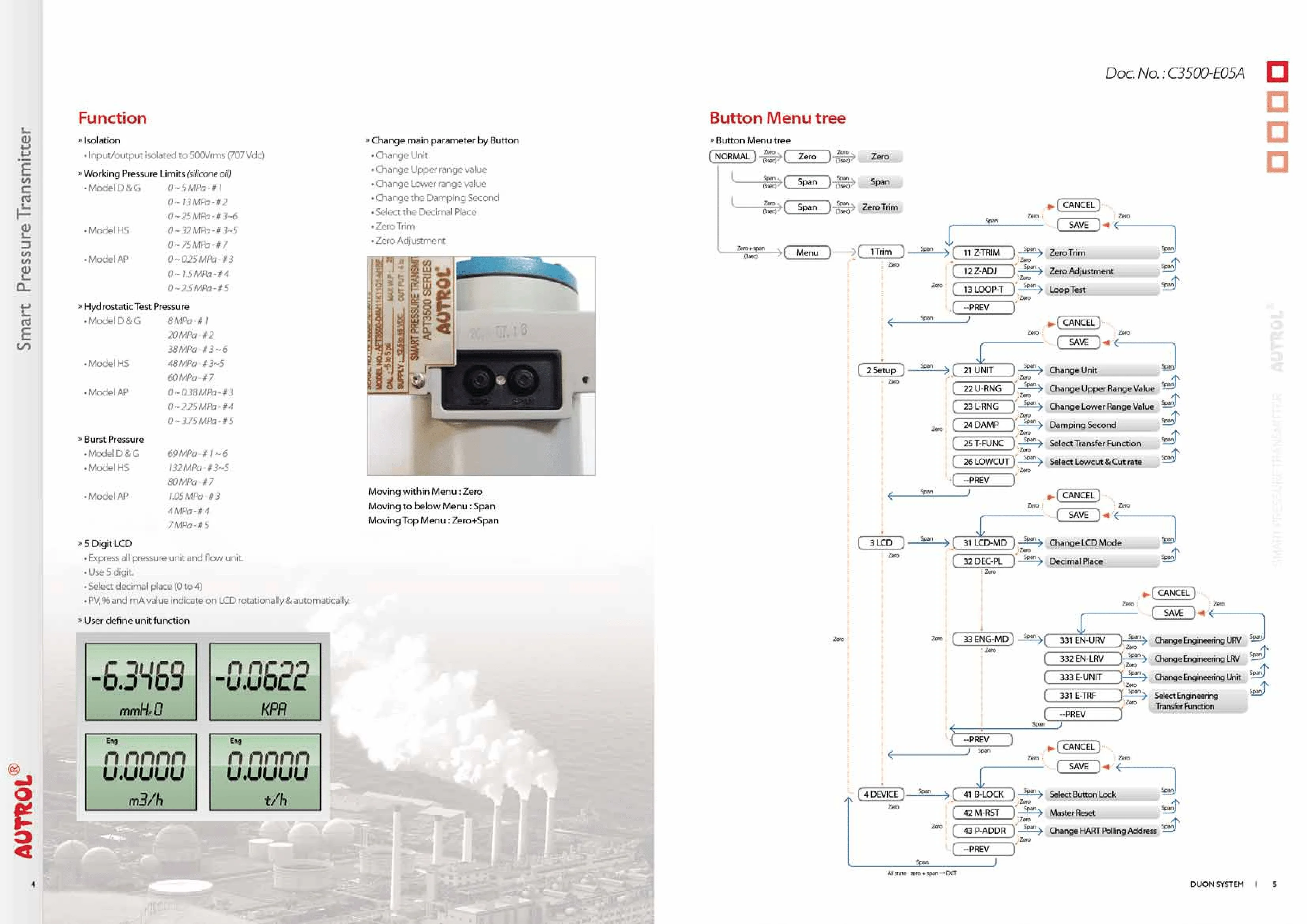

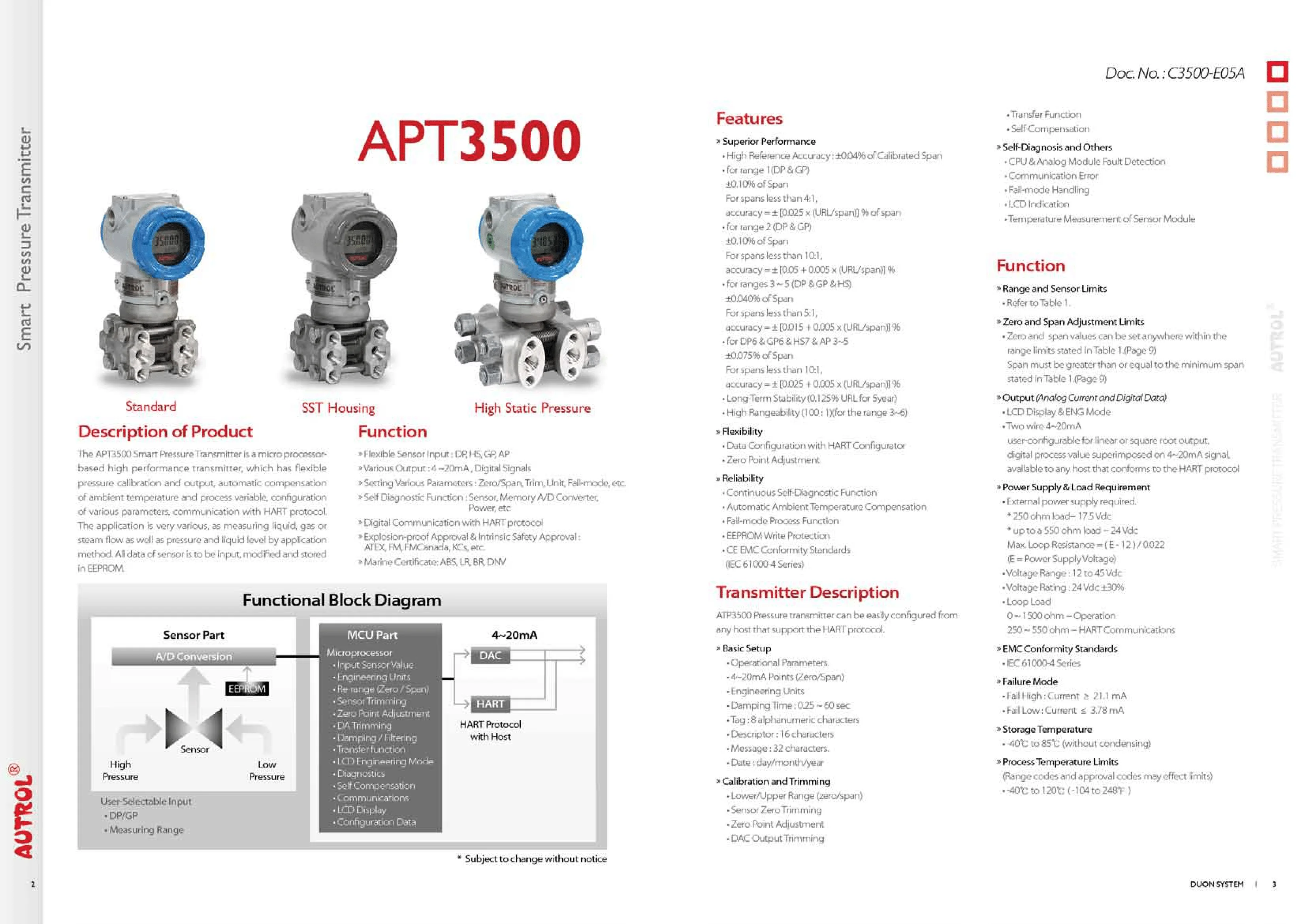

- Feature
- 4 to 20mA, HART, Loop Powered
Accuracy ± 0.04% of CS*
3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode, Gold Plate
- Application
- Advanced performance. Pressure, Flow, Level measurement for Oil & Gas, Liquid, Water, Marine & offshore, Vessel, Power, Chemical Plants and Refinary

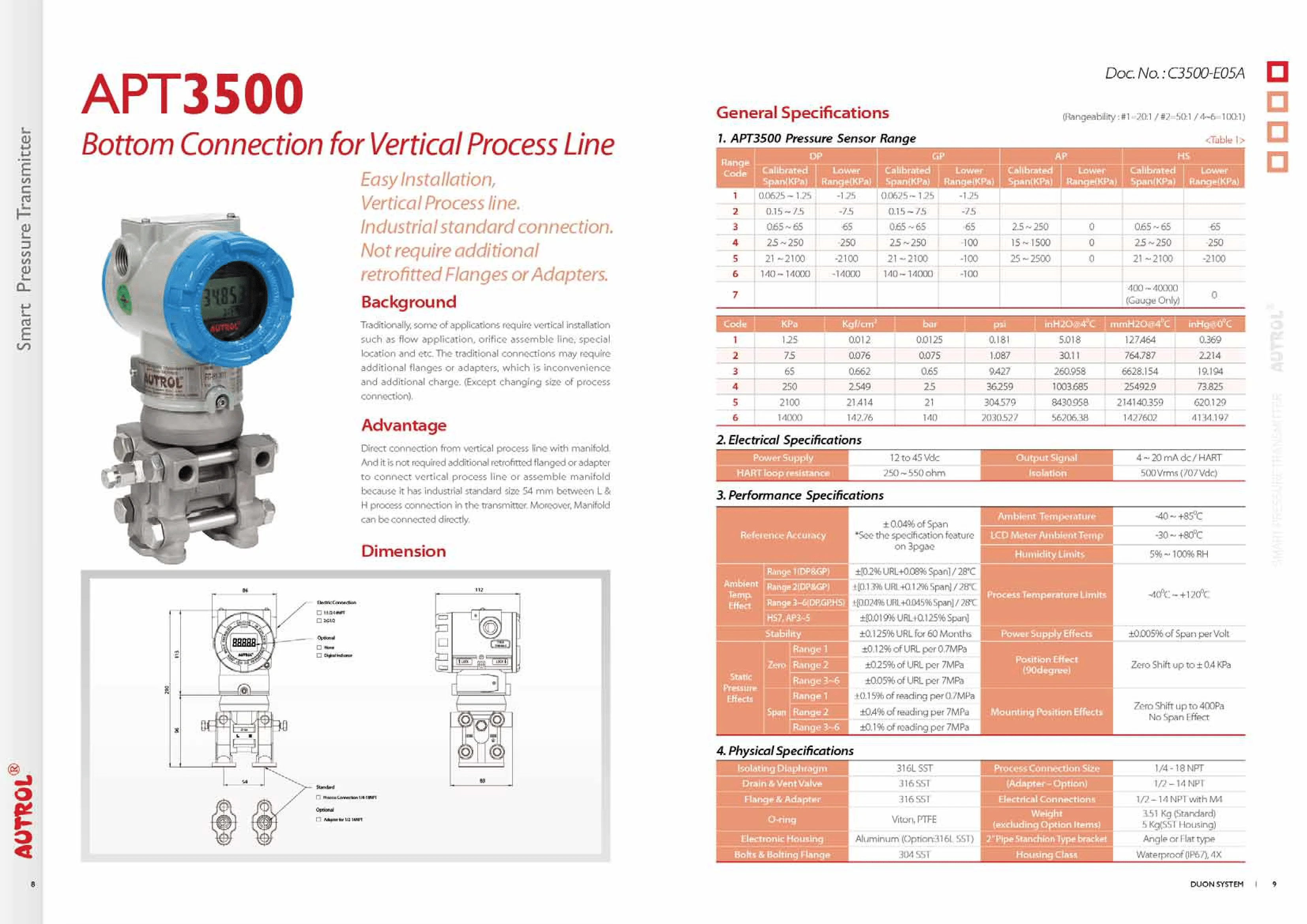

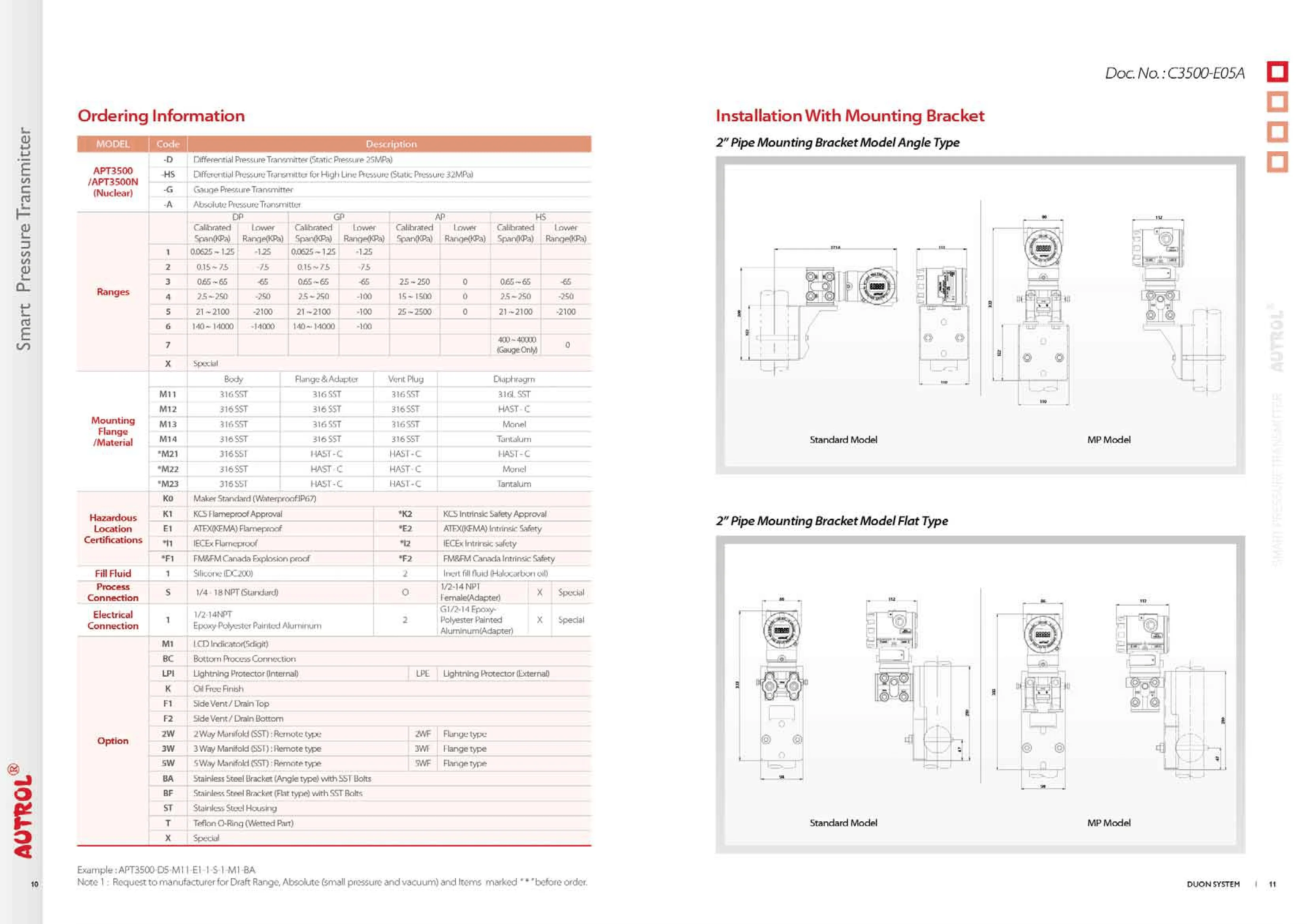

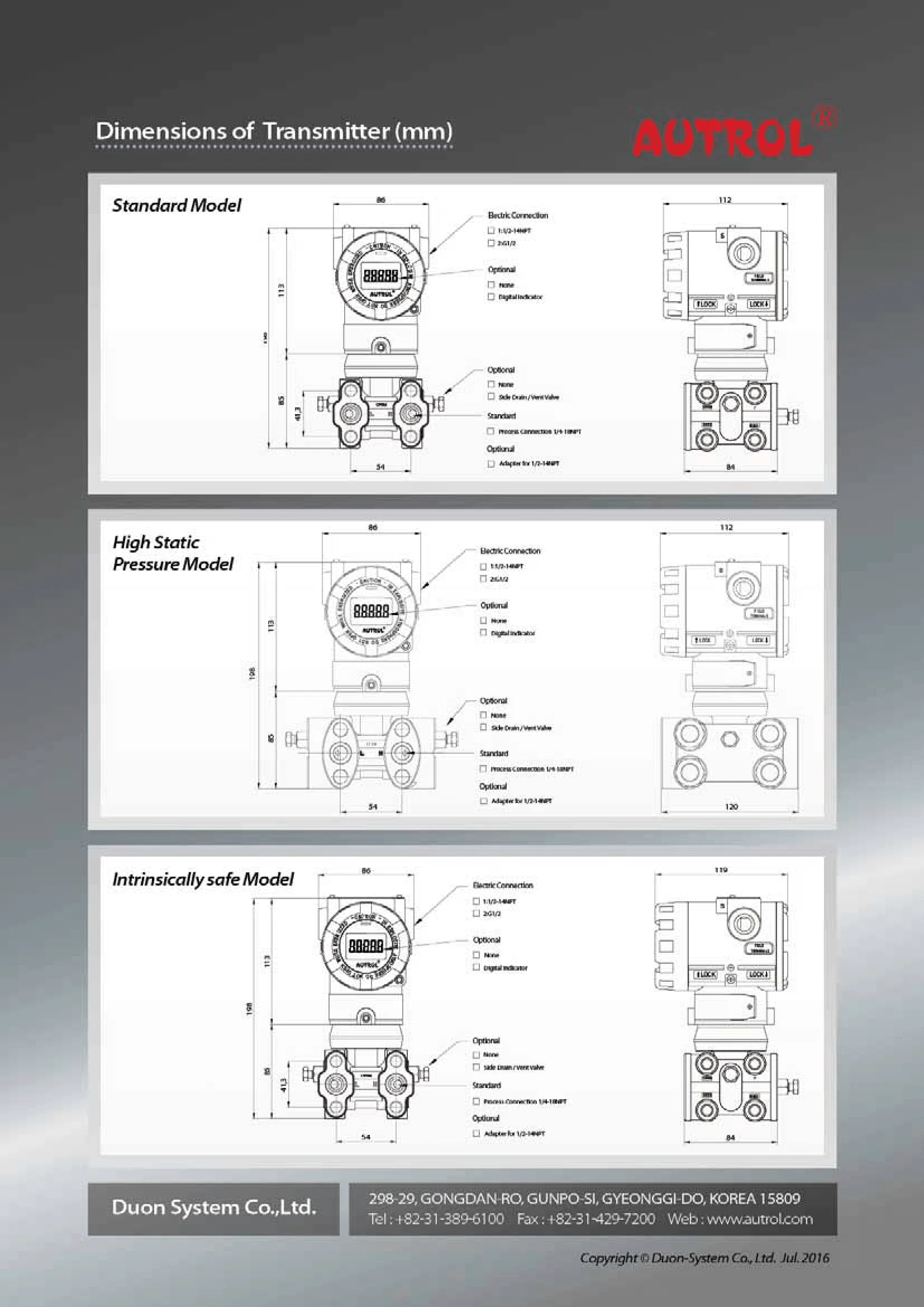

Type and Specifications
| Image | Model Type | Sensor Range | Calibrated Span | Max. Working Pressure | Advantage |
|---|---|---|---|---|---|
 |
APT3500-G Gauge Pressure | Min -1.25 to Max 14,000 kPa | Min 0.0625 to Max 14,000 KPa | Max 25 Mpa / 3,625 psi | High Gauge pressure |
 |
APT3500-A Absolute Pressure | Min 0 to Max 2,500 kPa | Min 2.5 to Max 2,500 kPa | Max 2.5 MPa / 363 psi | Absolute pressure |
 |
APT3500-D Differential Pressure | Min -1.25 to Max 14,000 KPa | Min 0.0625 to Max 14,000 kPa | Max 25 MPa / 3,625 psi | Advanced performance on high pressure & high temp condition |
 |
APT3500-HS High Static Pressure | Min -65 to Max 14,000 kPa (Gauge Only 40,000 kPa) | Min 0.65 to Max 2,100 kPa (Gauge Only 40,000 kPa) | 32 MPa / 4,641 psi (Gauge Only 75 Mpa / 10,878 psi) | Max. up to 40 MPa stability with special connection |
 |
APT3500- -BC Bottom Connection | Min -1.25 to Max 14,000 KPa | Min 0.0625 Kpa to Max 14,000 KPa | Max 25 MPa / 3,625 psi | Bottom direction process connection for flow & DPIT |
 |

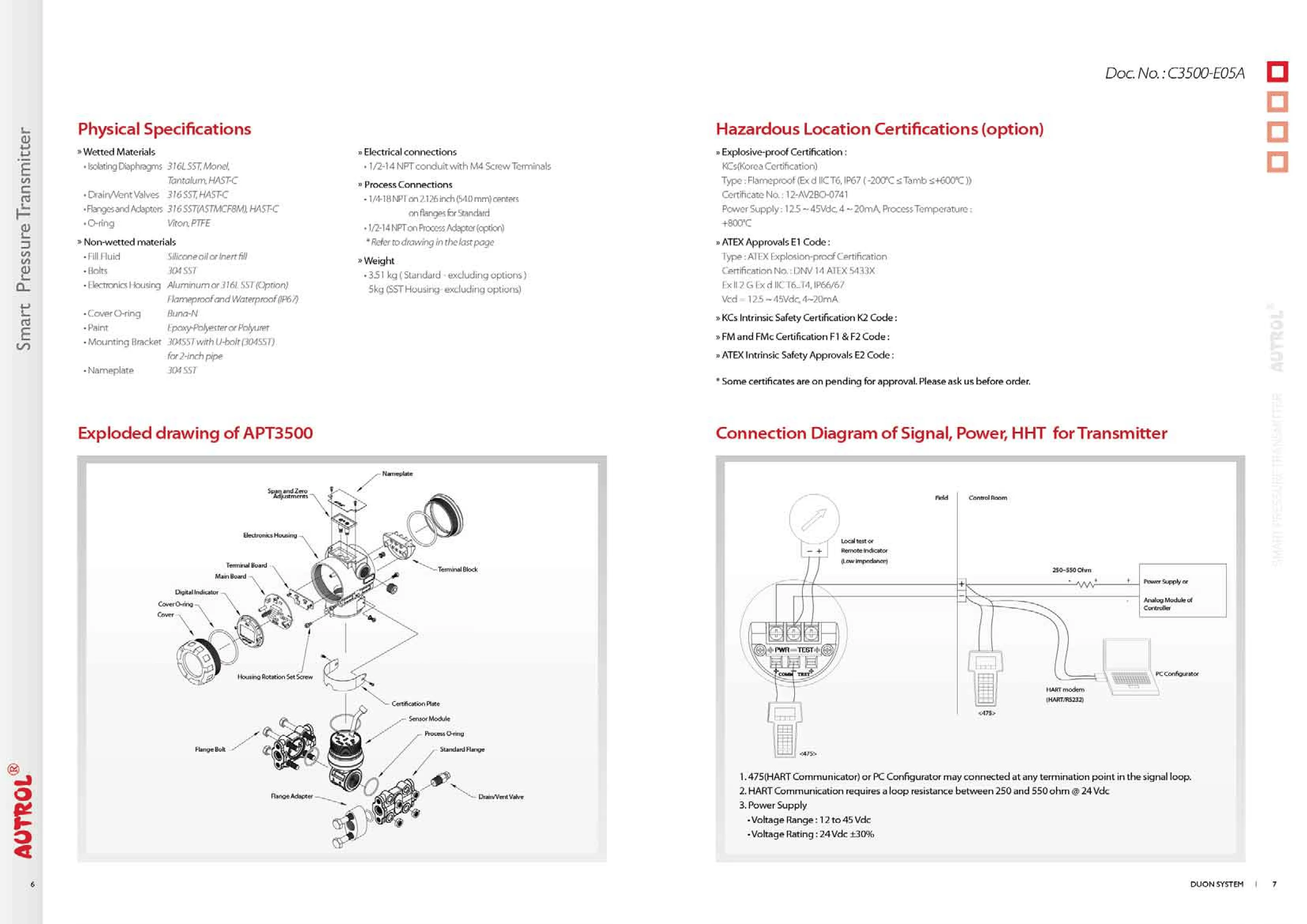

APT3500-D-ST | Min -1.25 to Max 14,000 KPa | Min 0.0625 Kpa to Max 14,000 KPa | Max 25 MPa / 3,625 psi | Advanced performance on high pressure & high temp condition, Stainless Steel Housing |
| Model Name | APT3500 |
| Protocol | Digital Communication, HART 7, Fieldbus Foundation |
| Trim ability | Zerom DAC, FULL |
| Power supply & Load Requirement | 250 to 550 ohm @ 24 Vdc, Loop Powered |
| Falure Mode | Low ≤ 3.6 mA, High ≥ 21.1 mA |
| External Buttons | Zero & Span 2 buttons for device configuration |
| Process Temp. limit | -40 to 120°C ( -104 to 248°F ) |
| Range Abilitiy | 100:1 |
| Stability | 0.125% URL for 60 mont |
