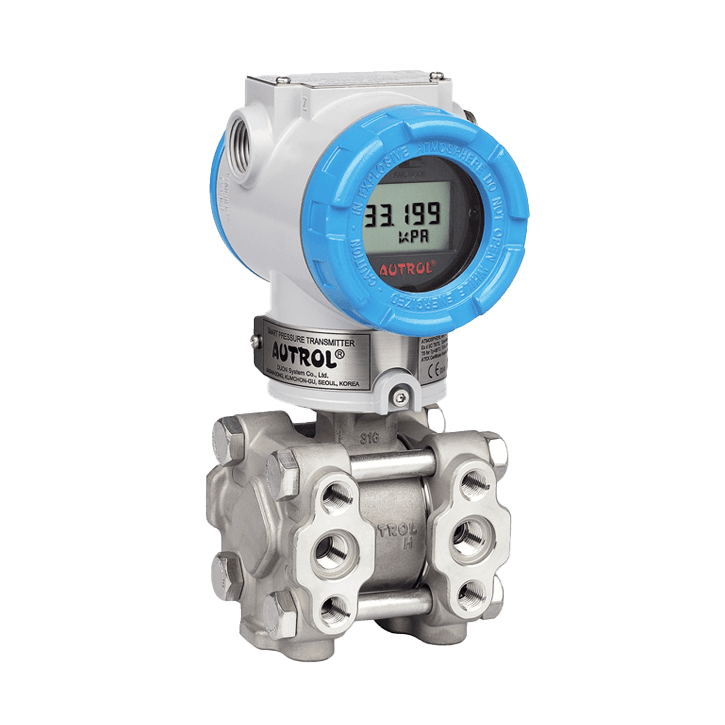

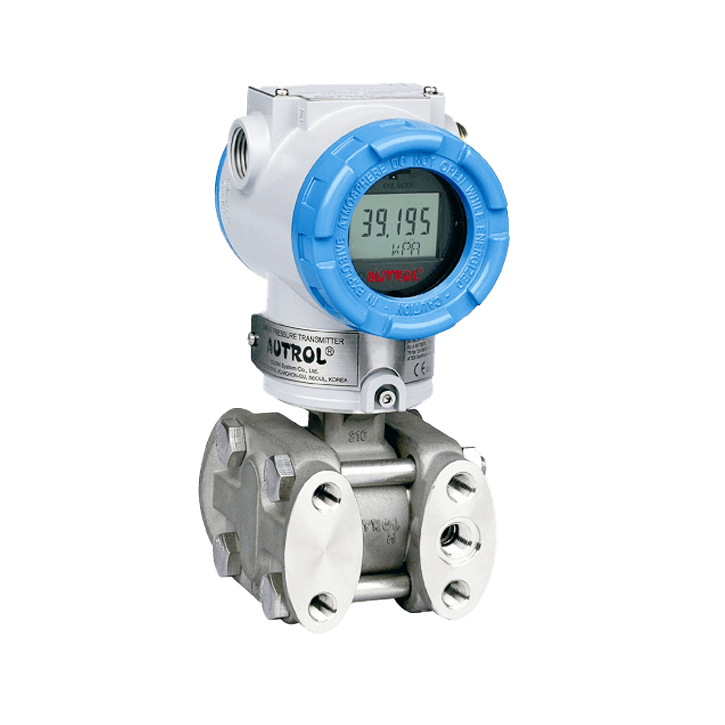

APT3100
등록일: 2023. 07. 20.태그: APT3100, Autrol
- Type
- Pressure: Differential(DPIT), Gauge/ Absolute(PIT),
Level(LIT), High Static Pressure, Flow Pressure(FIT)
- Certificate
- SIL2 (TUV, FMEDA), Ex d, Ex ia, FM, ATEX, TR
CU(EAC), INMETRO, CE, Rohs, BV, LR, KR, DNV, ABS,
KCs, IP66/67, NEMA 4X
- Feature
- 4 to 20mA, HART, Loop Powered
Accuracy ± 0.075% (option ± 0.04%) of CS*
3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode
- Application
- Pressure, Flow, Level measurement for Oil & Gas, Liquid, Water, Maine & offshore, Vessel, Power, Chemical Plants and Refinary
Type and Specifications
| Image | Model Type | Sensor Range | Calibrated Span | Max. Working Pressure | Advantage |
|---|---|---|---|---|---|
 |
APT3100-G Guage pressure | Min -1.5 to Max 41,370 kPa | Min 0.075 to Max 41,370 kPa | Max 75 MPa / 10,878 psi | Low pressure gauge measurement |
 |
APT3100-A Absolute pressure | Min 0 to Max 2,500 kPa(A) | Min 2.5 to Max 2,500 kPa(A) | Max 5.25 MPa / 761 psi | Absolute pressure measurement |
 |
APT3100-D Differential pressure | Min -1.5 to Max 6,895 kPa | Min 0.075 to Max 6,895 kPa | 13.79 MPa / 2,000 psi | Differential, Flow & Level measurement |
 |
APT3100-H High Static pressure | Min -37.3 to Max 2,068 kPa | Min 0.373 kPa to Max 2,068 kPa | 31.02 MPa / 4,525 psi | High static pressure measurement |
 |
APT3100- / -MP Multi-planar | Min -1.5 to Max 6,895 KPa | Min 0.075 to Max 6,895 KPa | 31.02 MPa / 4,525 psi (75 Mpa for GP) | 3 process connections including bottom direction |
 |
APT3100-F | Min -1.5 to Max 6,895 KPa | Min 0.075 to Max 6,895 KPa | 13.79 MPa / 2000 psi | Flow Totalizing, Additional 2 wires for Pulse output to relay/counte |
 |

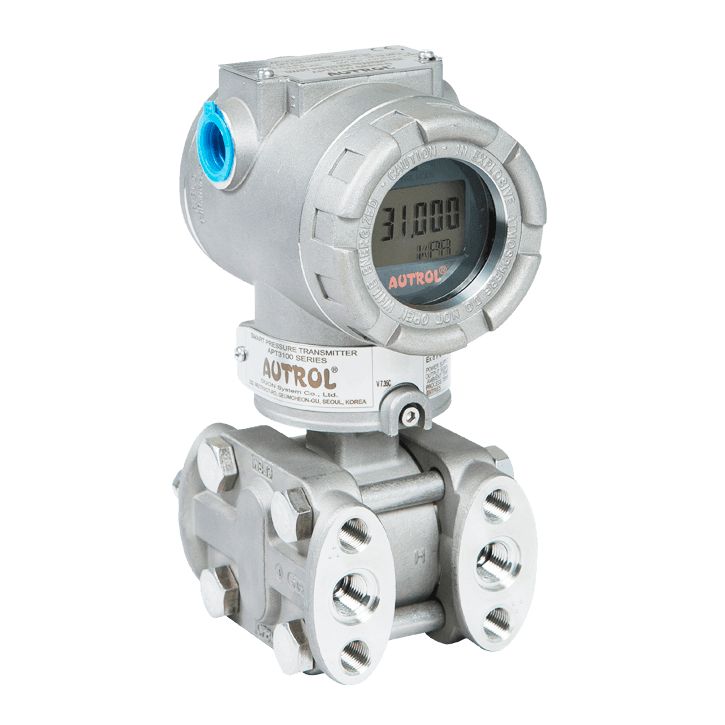

APT3100-D-ST | Min -1.5 to Max 6,895 KPa | Min 0.075 to Max 6,895 KPa | 13.79 MPa / 2000 psi | Differential, Flow & Level measurement, Stainless Steel Housing |
| Model Name | APT3100 |
| Protocol | 4 to 20mA + Digital Communication, HART 5 |
| Trim ability | Zero, DAC, FULL |
| Power supply & Load Requirement | 250 to 550 ohm @ 24 Vdc, Loop Powered |
| Falure Mode | Low ≤ 3.6 mA, High ≥ 21.1 mA |
| External Buttons | Zero & Span 2 buttons for device configuration |
| Process Temp. limit | -40 to 120°C ( -104 to 248°F ) |
| Range Abilitiy | 100:1 |
| Stability | ±0.125% URL for 36 months |
